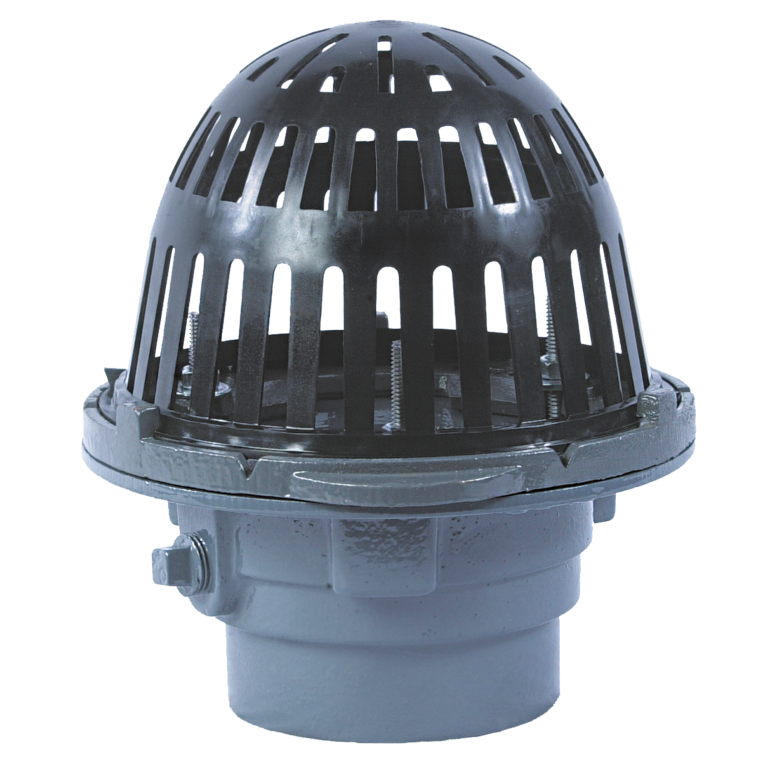

RD-200 epoxy coated cast iron roof drain with flashing clamp with integral gravel stop, self-locking polyethylene dome (standard) and no hub (standard) outlet. Constructed to withstand climate and the rigors of long-term use.
Features
- Engineered with cast iron for long life and durability
- Self-locking polyethylene dome (standard) and no hub (standard) outlet simplify installation and maintenance
- Flashing clamp and integral gravel stop ensure reliable drainage
Options
- Sump receiver
- Underdeck clamp
- Deck flange/adjustable extension
- Aluminum strainer
- Cast iron strainer
- Vandal proof strainer
- 2" external water dam
- Available in 2", 3" and 4"
- Available in PVC Body
Information
Size/Part#
2" - BHWS10
3" - BHWS20
4" - BHWS30
Body: Cast iron
Flange: N/A
Outlet length: No hub
Clamping Ring: 8" Cast iron
Strainer: 8" Polyethylene
Specifications
Free area: 35 square inches
Deck opening: 6-1/2" (165)
With sump receiver: 8" (203)
