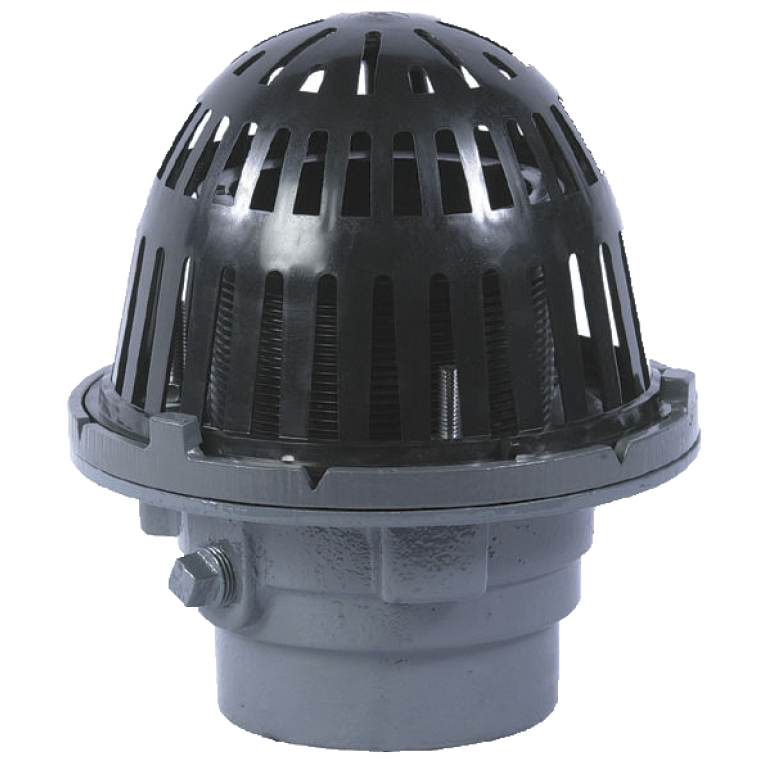

RD-200-W Small Body Roof Drain With Internal Overflow Standpipe

RD-200-W epoxy coated cast iron overflow roof drain with flashing clamp with integral 4" (102mm) tall standpipe, self-locking polyethylene dome (standard), and no hub (standard) outlet.

Features

Engineered with cast iron for long life and durability
Self-locking polyethylene dome (standard) and no hub (standard) outlet simplify installation and maintenance
Flashing clamp and integral internal standpipe help ensure reliable drainage

Options

Sump receiver
Underdeck clamp
Deck flange/adjustable extension
Aluminum strainer
Cast iron strainer
Vandal proof strainer
Available in 2", 3" and 4"

Information

Size/Part #

2" BHWS70

3" BHWS80

4" BHWS90

Body: Cast iron
Flange: N/A
Outlet length: No hub
Clamping Ring: 8" Cast iron
Strainer: 8" Polyethylene

Resources

Direct Connect: Product Brochure RD-200-W: Data Sheet RD-200 Small Body: CAD Drawing MRP Supports : Specification

Specifications

Free area: 35 square inches

Deck opening: 6-1/2" (165)

With sump receiver: 8" (203)
