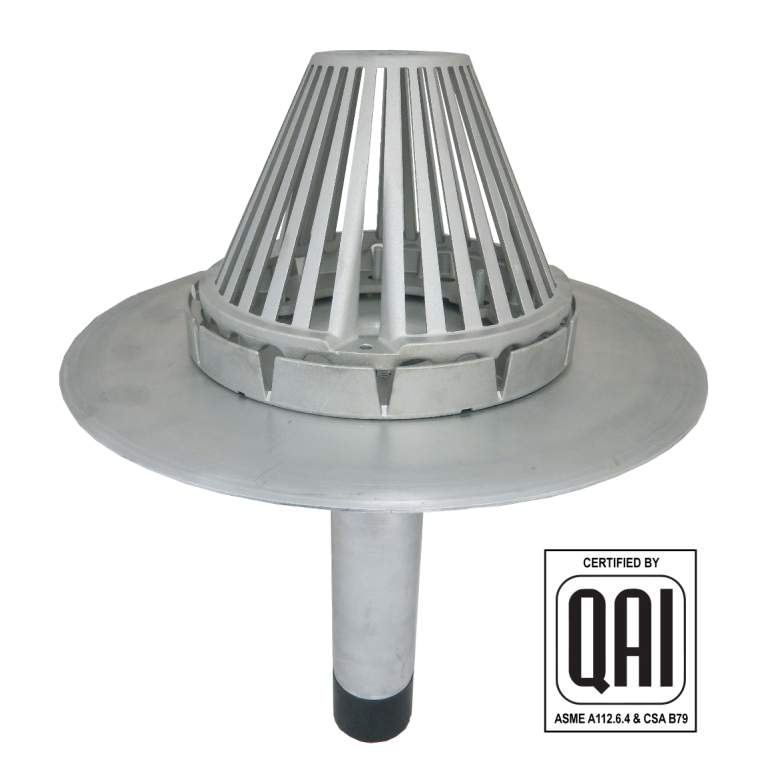

Aluminator Roof Drain

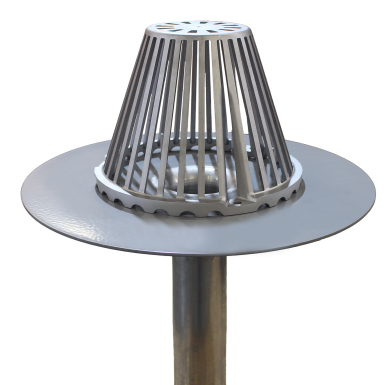

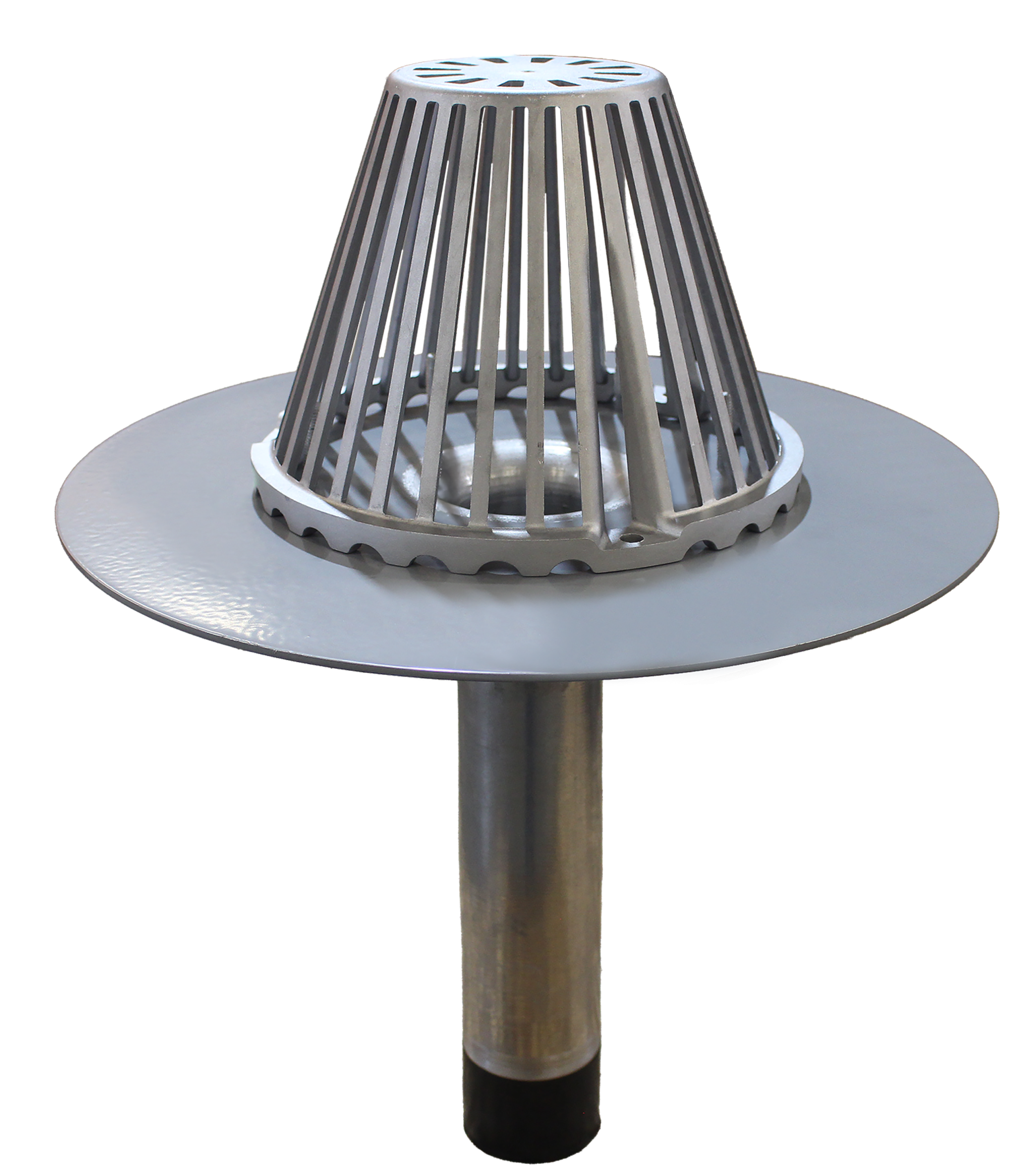

Aluminator TPO coated

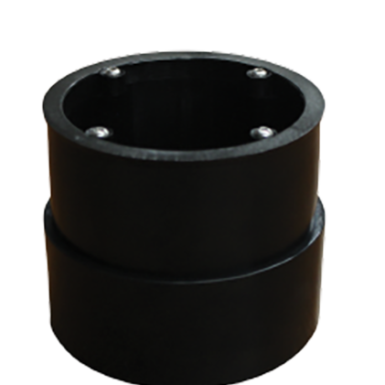

Proseal

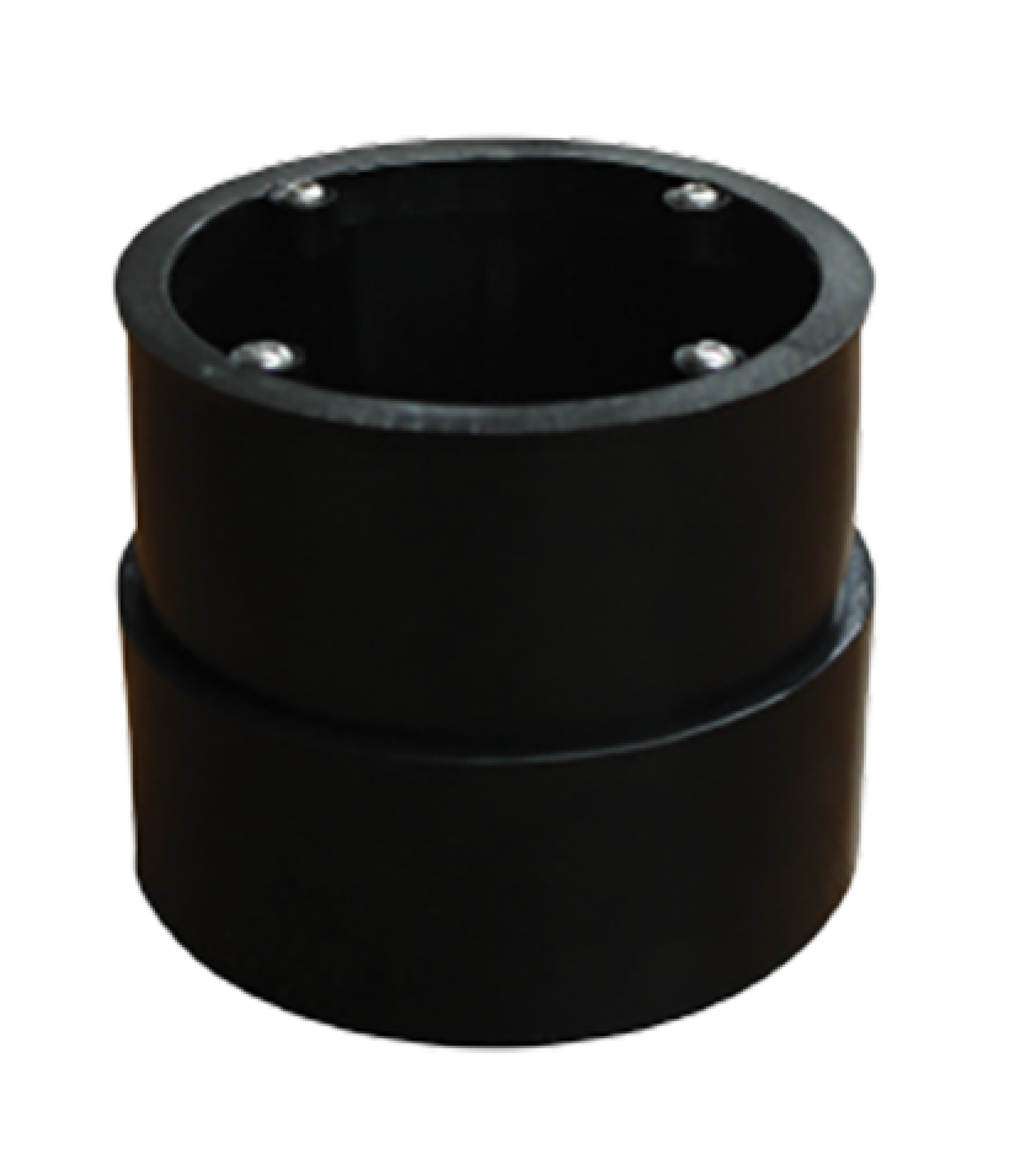

Proseal Closeup

All aluminum retrofit roof drain for quick and easy installation. Constructed of heavy gauge spun aluminum. The Aluminator also includes a strong mechanical ProSeal to prevent water backflow issues.

Features

All aluminum retrofit roof drain
Heavy duty cast aluminum ring designed for maximum drainage
Cast aluminum strainer
Larger stud diameter for increased strength
Includes ProSeal for a strong mechanical seal to prevent water back-up issues

Options

2" aluminum combination clamping ring/overflow dam
2" and 4" aluminum overflow insert
2-3/4" Aluminum low profile strainer
TPO coated flange

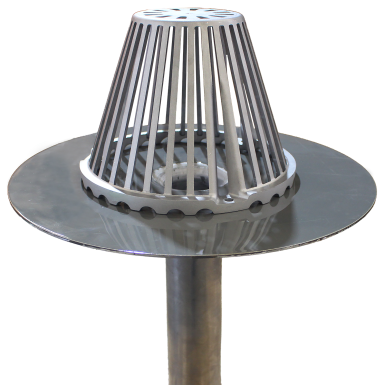

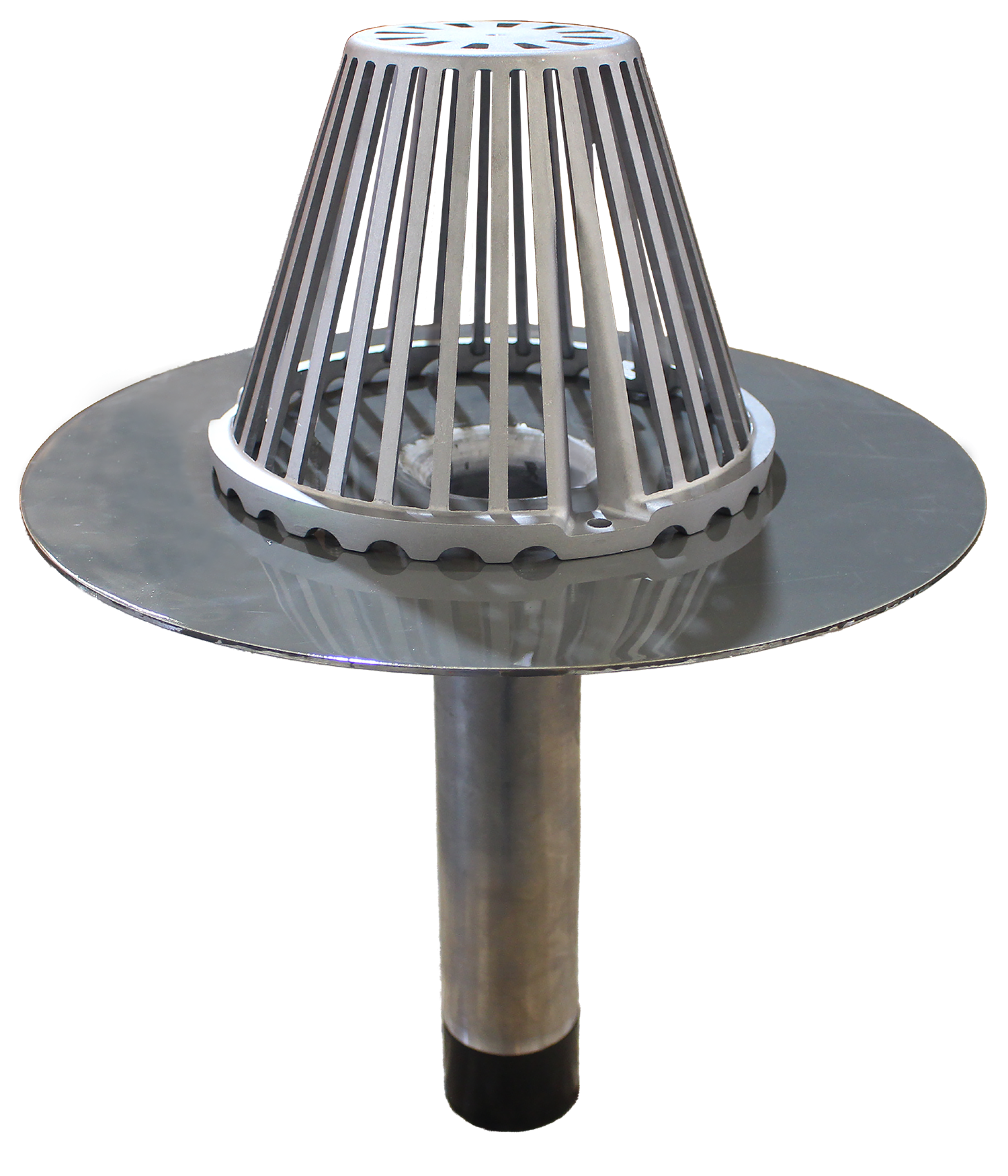

PVC coated flange
Available in sizes of 3", 4", 5", 6" w/ ProSeal Rubber Seal. Certified to conform with ASME 112.6.4 and CSA B79 standards
2" & 8" supplied with Tape Seal
Non standard sizes also available - 2.5", 3.5" and 4.5". All supplied with Tape Seal

Information

Size/Part #

2" - BALUM2CR * Supplied with Tape Seal

3" - BALUM3CRP

4" - BALUM4CRP

5" - BALUM5CRP

6" - BALUM6CRP

8" - BFF775-SCRARD * Supplied with Tape Seal

2.5" - BALUM200CRS * Supplied with Tape Seal

3.5" - BALUM300CRS * Supplied with Tape Seal

4.5" - BALUM400CRS * Supplied with Tape Seal

Body: Heavy gauge spun aluminum
Flange: 16"
Outlet length: 12"
Clamping Ring: 10" Aluminum
Strainer: 10" Aluminum
Packaging: 1/carton

Resources

Aluminator Updated Data Sheet: Data Sheet Aluminator: Product Brochure Aluminator : Data Sheet Aluminator: Installation Guide Aluminator Roof Drain: CAD Drawing Aluminator Roof Drain: Specification

Certifications

Specifications

Roof Drain Size	Starting OD of Seal/Outlet	Fits into Pipe ID	Maximum Expansion Diameter of Seal	ID of Seal	GPM
3"	2.85"	2 7/8" - 3 1/4"	3.40"	2.19"	45
4"	3.80"	3 7/8" - 4 1/4"	4.40"	3.12"	85
5"	4.80"	4 7/8" - 5 1/4"	5.40"	4.15"	180
6"	5.70"	5 7/8" - 6 1/4"	6.60"	5"	210
