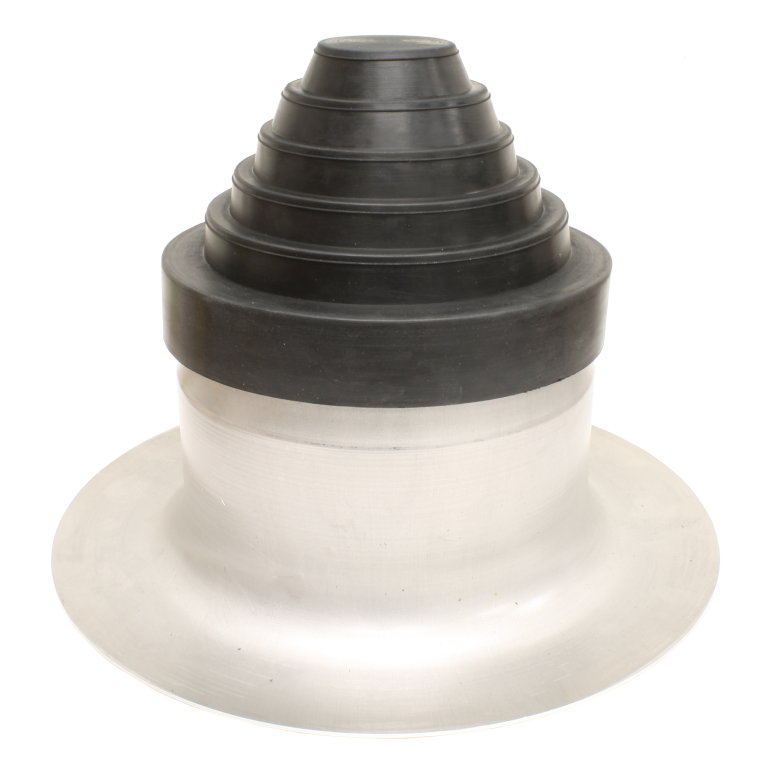

MARATHON’S UNI-BOOT provides a permanent watertight and maintenance free means for penetrating roof systems. The UNI-BOOT is able to be used on all types of roof systems while eliminating the need for pitch pans. Made from EPDM, rubber caps and spun aluminum base, the UNI-BOOT eliminates roof leaks from roof penetrations.
Features
- EPDM black cap made for maximum resistance to weathering, ozone, UV, and extreme hot and cold temperatures
- New caps are mechanically sealed to dual beads on the Uni-Boot Aluminum base and grooves on the inside of the EPDM Cap
- Provides a permanent, watertight and maintenance free seal around pipe. Stainless steel clamps provided to give added protection for pipe seal
- Each Cap accommodates 1/4", 3-7" pipe sizes
- Two steel band provided (3"-5" and 5"-7")
-
9-3/4" tall with rubber boot, 14" flange, 8" diameter stack and 6-1/4" aluminum base
Options
- EPDM white cap
- TPO coated flange
- PVC coated flange
Information
Part #
BUNIBOOT
