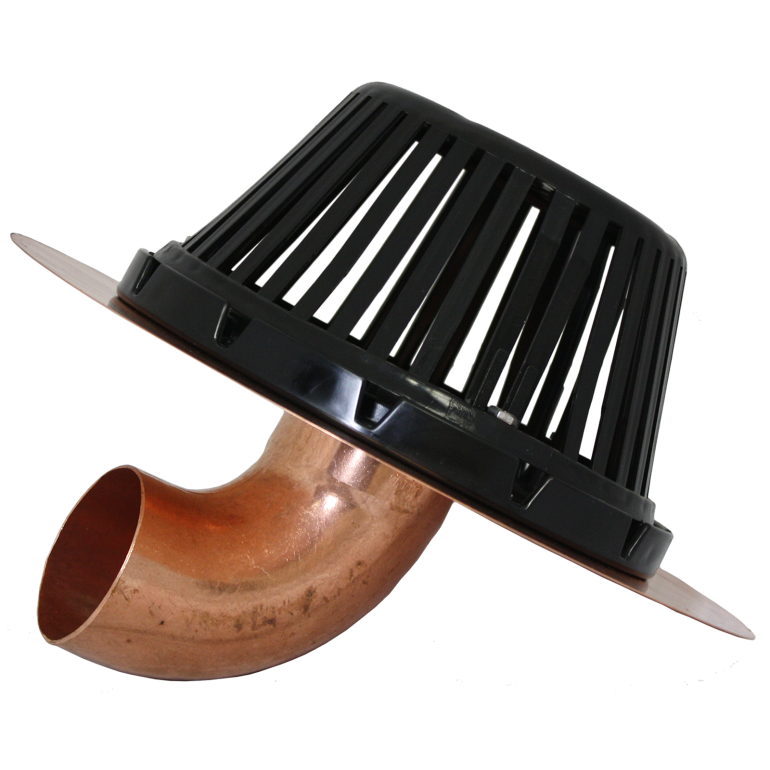

Versatile and economical the Side outlet roof drain was designed to accommodate drainage in spaces where normal vertical drainage is impeded by structural limitations.
Features
- Horizontal discharge copper drain to route water laterally in shallow access areas
- 90 degree outlet
Options
- Aluminum strainer
- 2-3/4" low profile aluminum strainer
- Cast iron strainer
- Aluminum clamping ring
- Metal clamping ring
- No clamping ring
- TPO coated flange
- PVC coated flange
- Available is sizes of 2", 3" and 4"
Information
Size/Part #
2" - BCPS2COP90CR
3" - BCPS3COP90CR
4" - BCPS4COP90CR
Body: Copper
Flange: 18"
Outlet length: variable
Clamping Ring: 10" ABS
Strainer: 10" Polyethylene
Specifications
| Drain size | Minimum vertical space required |
| 2" | 3-3/4" |
| 3" | 5-1/4" |
| 4" | 6-1/2" |
Related Products
RD-200-SO Small Body Side Outlet Roof Drain
Type: New Installation/Direct Connect
Material: Cast Iron
RD-280-SO Roof Drain
Type: New Installation/Direct Connect
Material: Cast Iron

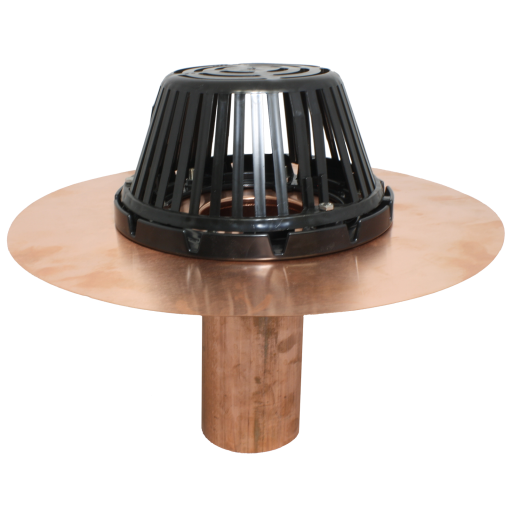

Premium Century Roof Drain
Type: New Installation/Direct Connect
Material: Copper

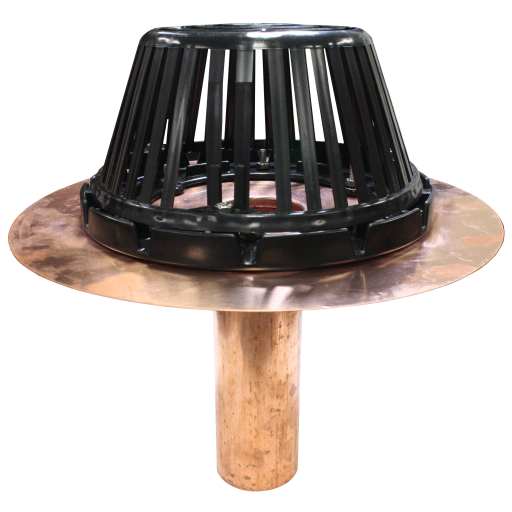

Economy Century Roof Drain
