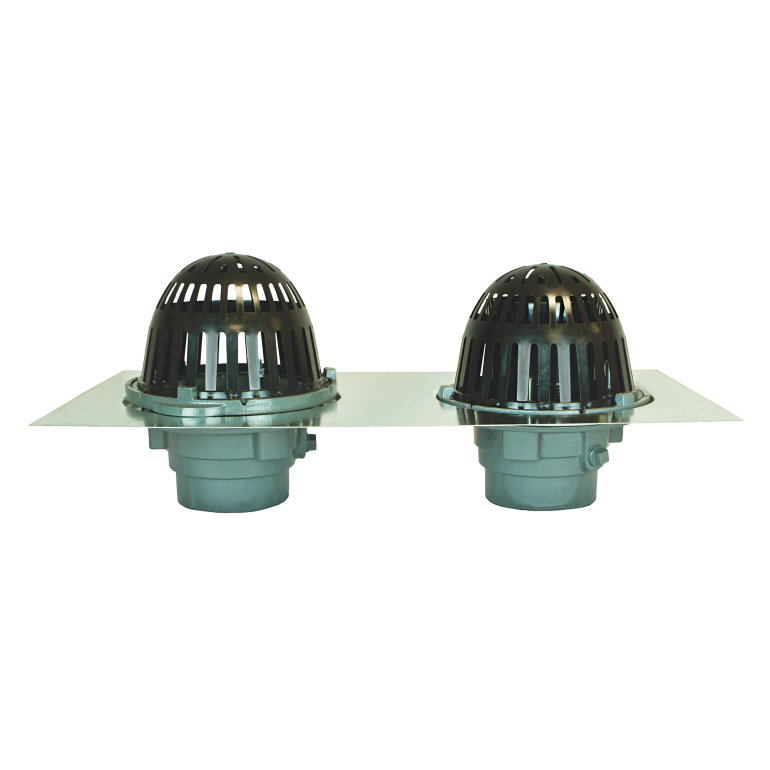

RD-260 Small Area Dual Overflow Roof Drain

RD-260 combination roof drain/overflow with epoxy coated cast iron drain bodies, flashing clamps with integral gravel guards, 4 in. (102mm) high internal standpipe, self locking polyethylene domes, under-deck clamp, 16" x 32" deck flange and no hub (standard) outlets. Constructed to withstand climate and the rigors of long-term use.

Features

Self-locking polyethylene dome and no hub (standard) outlet simplify installation and maintenance
Flashing clamps with integral gravel guards and standpipe help ensure reliable drainage and overflow
Engineered with cast iron for long life and durability
Under-deck clamp

Options

Push on
Threaded outlet
Cast iron strainer
Aluminum strainer
Vandal proof strainer
Side outlet
Available in 2", 3" and 4"

Information

Size/Part #

2" - BHWS40

3" - BHWS50

4" - BHWS60

Resources

Direct Connect : Product Brochure RD-260: Data Sheet RD-260 Small Area Dual Overflow: CAD Drawing RD-260 Small Area Dual Overflow Roof Drain: Specification

Specifications

Free area: 70 square inches

Deck opening: 8-1/4" x 20-1/4"
