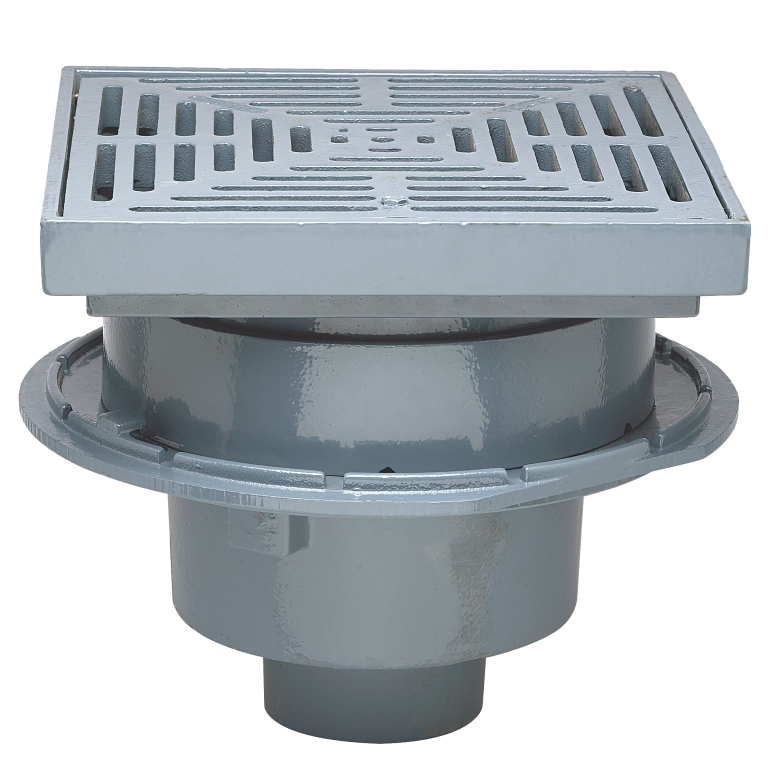

RD-100-CP epoxy coated cast iron roof drain with flashing clamp with integral gravel stop, 12-3/4 in. x 12-3/4 in. (324 x 324) square epoxy coated ductile iron heel proof promenade top, and no hub (standard) outlet. Constructed to withstand climate and the rigors of long-term use.
Features
- Heel proof promenade top
- No hub outlet (standard) for easy installation
- Epoxy coating cast iron drain for smooth finish and long life
Options
- Push-on or threaded outlets
- Sump receiver
- Under-deck clamp
- Side outlet
- Adjustable extension flange
- PVC body
- Available in 2" - 6"
Information
Size/Part #
2" RD-100-CP Roof Drain
PN: BHWL170
3" RD-100-CP Roof Drain
PN: BHWL180
4" RD-100-CP Roof Drain
PN: BHWL190
5" RD-100-CP Roof Drain
PN: BHWL195
6" RD-100-CP Roof Drain
PN: BHWL200
Body: Cast iron
Flange: N/A
Outlet length: No hub
Clamping Ring: N/A
Strainer: 12-3/4" x 12-3/4"
Specifications
Free area: 41 square inches
Deck opening: 10"
With sump receiver: 13-3/4"
