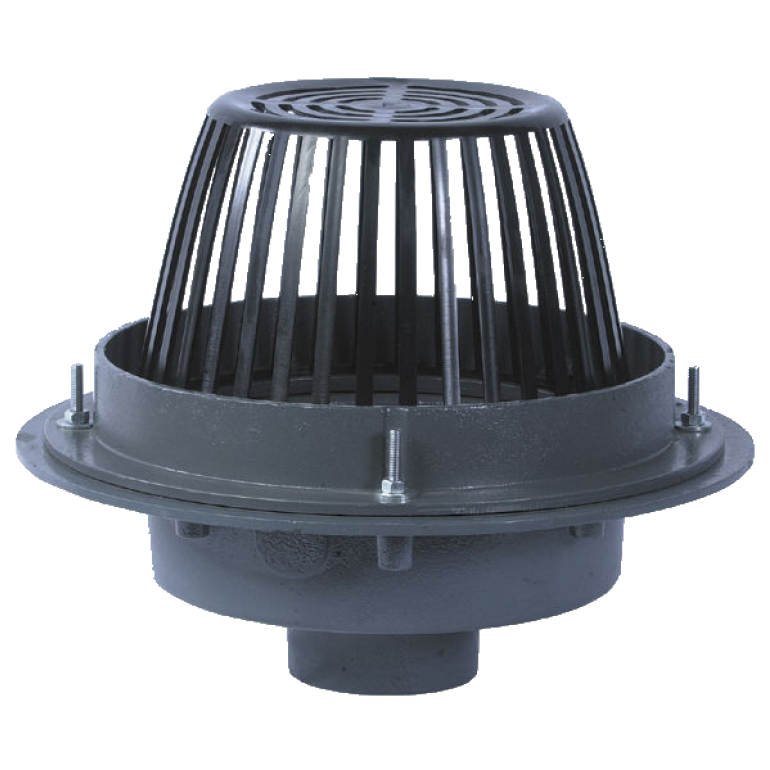

Series RD-300-R epoxy coated cast iron overflow roof drain with flashing clamp with integral 2 inch (51mm) high external water dam, self-locking polyethylene dome (standard), and no hub (standard) outlet.
Features
- Engineered with cast iron for long life and durability
- Self-locking polyethylene dome (standard) and no hub (standard) outlet simplify installation and maintenance
- Flashing clamp with integral external water dam for reliable drainage
Options
- Sump receiver
- Underdeck clamp
- Deck flange/adjustable extension
- Aluminum strainer
- Cast iron strainer
- Vandal proof strainer
- Available in 3", 4" and 6"
Information
Body: Cast iron
Flange: N/A
Outlet length: No hub
Clamping Ring: 2" external overflow
Strainer: 12" Plastic
Specifications
Free area: 137 square inches
Deck opening: 14-1/2", With sump receiver: 18"
