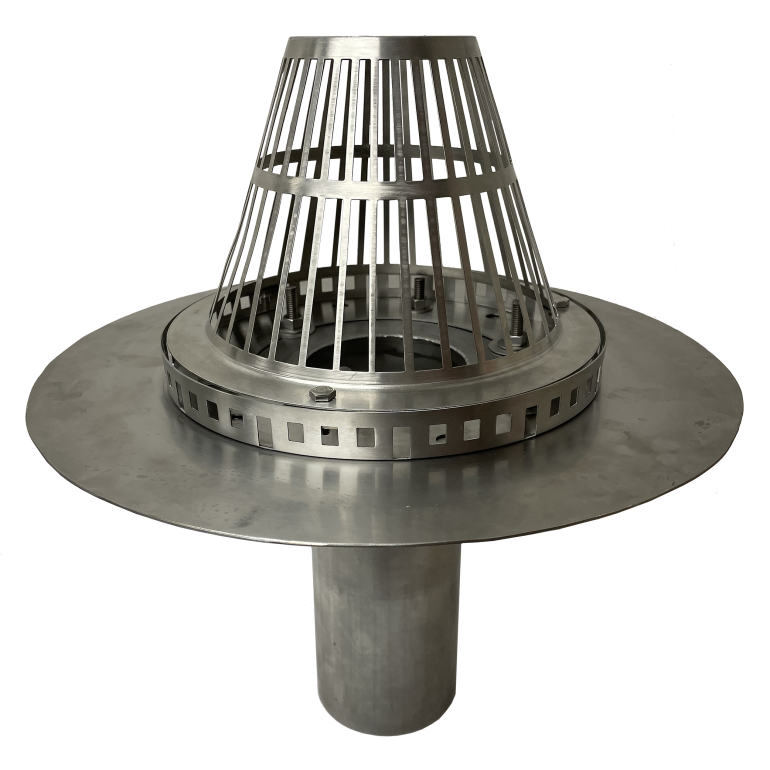

Poseidon Stainless Steel Roof Drain

Features

• Roof drain body constructed of 16 Gauge 304 Stainless Steel
• #316 Stainless Steel Clamping Ring and Strainer
• Supplied with ProSeal Rubber Seal to prevent water backup issues
• 16" Diameter Flange
• 12" long outlet
• Optional Security Hardware for strainer
• Optional PVC or TPO coating for direct hot weld applications
• Optional Cast Iron Clamping Ring & Strainer

Options

Size/Part #

3" Poseidon SS Retrofit Roof Drain w/ Proseal

PN: BSS3P

4" Poseidon SS Retrofit Roof Drain w/ Proseal

PN: BSS4P

6" Poseidon SS Retrofit Roof Drain w/ Proseal

PN: BSS6P

3" Poseidon SS Retrofit Roof Drain W/ Cast Iron Ring & Dome

PN: BSS3CI

4" Poseidon SS Retrofit Roof Drain W/ Cast Iron Ring & Dome

PN: BSS4CI

6" Poseidon SS Retrofit Roof Drain W/ Cast Iron Ring & Dome

PN: BSS6CI



Resources

Poseidon Stainless Steel Roof Drain: Data Sheet Poseidon Stainless Steel Roof Drain: CAD Drawing Poseidon Stainless Steel Line: Data Sheet Retrofit Roof Drain Brochure: Product Brochure

Certifications
