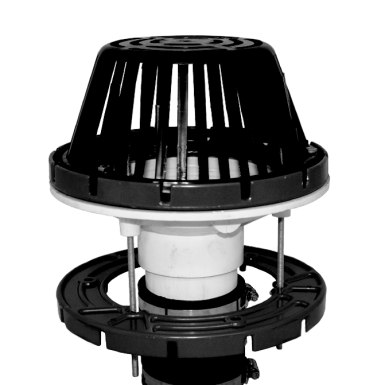

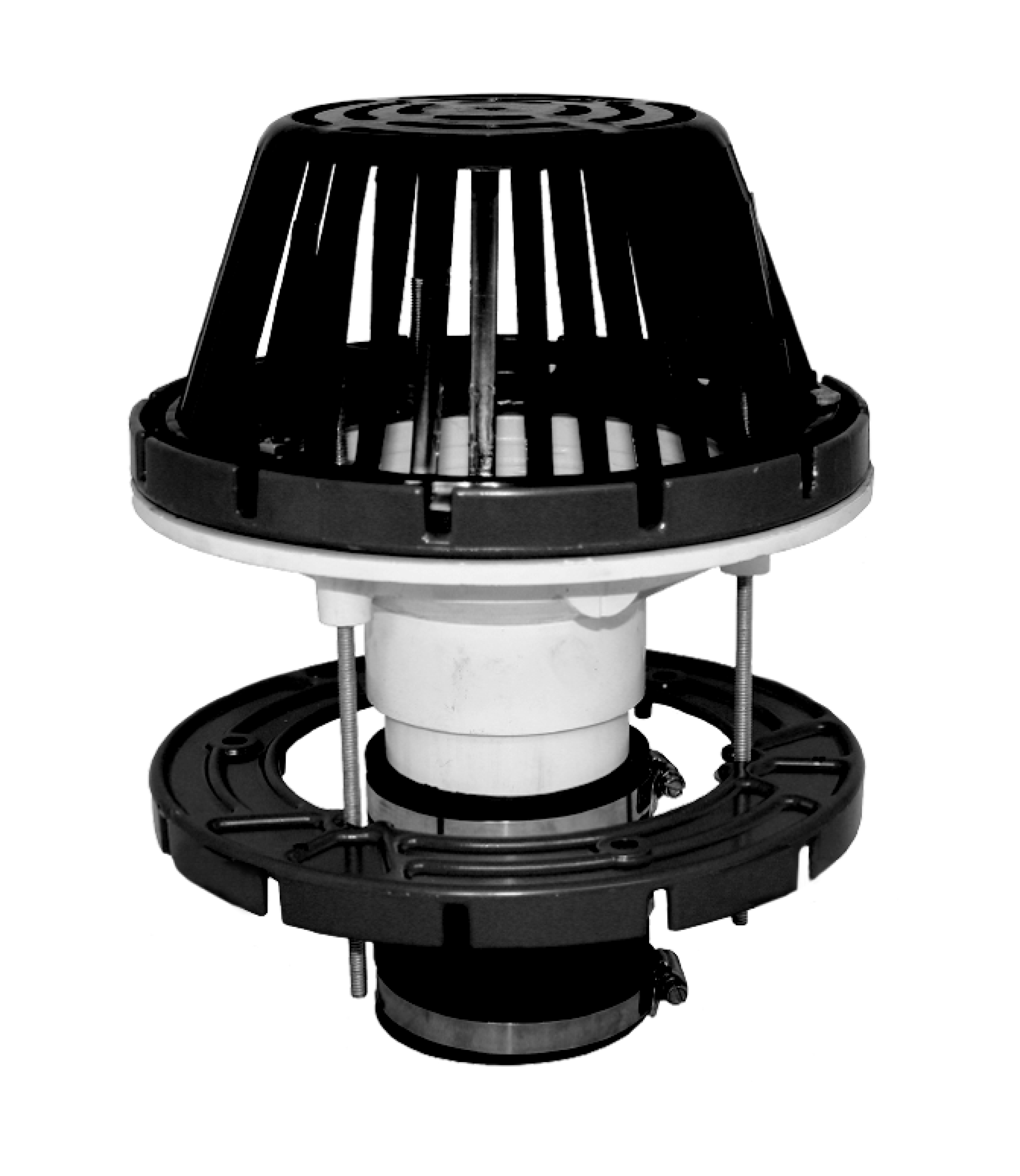

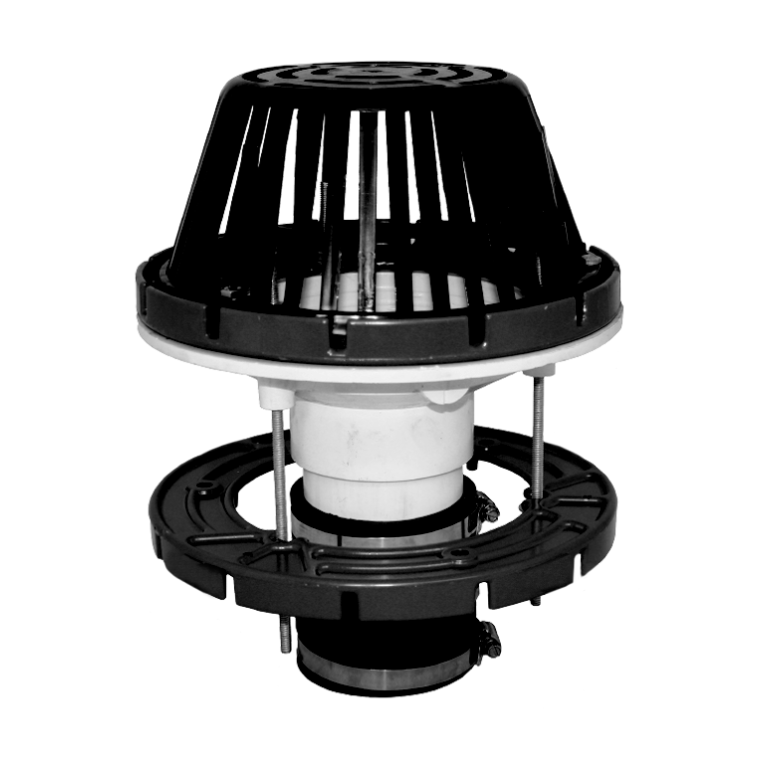

The MaraPak is a PVC new installation/direct connect roof drain that comes with all the necessary components for a quick and easy installation. The MaraPak new installation/direct connect roof drain provides the essential features of more expensive roof drains at an affordable price. This comes with plastic clamping ring and underdeck clamp. It is adaptable to most generic materials of single ply and conventional built-up roofing for use with roof decks of steel, wood, precast concrete or gypsum making it a versatile, economic and easy to install roof drain.
Features
- Newly designed - Injection molded PVC Drain Body with Reinforced Gussets to Increase Strength
- Newly designed - Ability to create an Overflow Drain by inserting a PVC Pipe at top of drain body
- Newly designed - Grooves added to Drain Body to create a tighter fit between the clamping ring and the drain body
- 10" Molded polyethylene strainer bolts to clamping ring
- Plastic clamping ring with gravel stop
- Plastic under-deck clamp
- UV stabilized for long life
- Flexible rubber expansion coupling - recommended to be used to connect drain to drain pipe
Options
Aluminum strainer
2-3/4" low profile aluminum strainer
Cast iron strainer
Extension flange
Bearing pan
2" overflow dam
PVC overflow insert
Available in 2", 3", 4" and 6"
Information
Information
Size/Part # - MaraPak
2" - MARAPAK2
3" - MAPAPAK3
4" - MARAPAK4
6" - MARAPAK6
*FOR OVERFLOW OPTION ADD SUFFIX - OF - TO THE PART #
Body: PVC
Flange: N/A
Outlet length: No hub
Clamping Ring: 10" Plastic
Strainer: 10" Polyethylene strainer
Packaging: 1/carton
