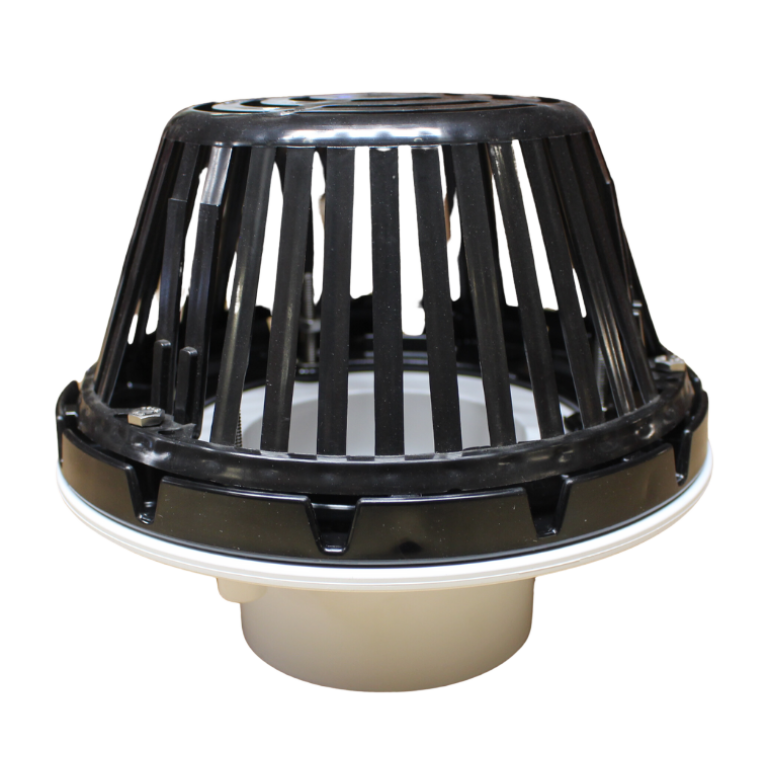

The MaraDrain is a PVC new installation/direct connect roof drain that comes with all the necessary components for a quick and easy installation. The MaraDrain new installation/direct connect roof drain provides the essential features of more expensive roof drains at an affordable price. This comes with a PVC Body, plastic clamping ring and plastic strainer. It is adaptable to most generic materials of single ply and conventional built-up roofing for use with roof decks of steel, wood, precast concrete or gypsum making it a versatile, economic and easy to install roof drain.
Features
- Newly designed - Injection molded PVC Drain Body with Reinforced Gussets to Increase Strength
- Newly designed - Ability to create an Overflow Drain by inserting a PVC Pipe at top of drain body
- Newly designed - Grooves added to Drain Body to create a tighter fit between the clamping ring and the drain body
- 10" Molded polyethylene strainer bolts to clamping ring
- Plastic clamping ring with gravel stop
- UV stabilized for long life
Options
Aluminum strainer
2-3/4" low profile aluminum strainer
Cast iron strainer
Extension flange
Bearing pan
2" overflow dam
PVC overflow insert
Available in 2", 3", 4" and 6"
Information
Information
Size/Part # - MaraDrain - Supplied only with PVC Body, Clamping Ring and Strainer
2" - MARADRAIN2
3" - MARADRAIN3
4" - MARADRAIN4
6" - MARADRAIN6 * Supplied with 12" strainer
*FOR OVERFLOW OPTION ADD SUFFIX - OF - TO THE PART #
Body: PVC
Flange: N/A
Outlet length: No hub
Clamping Ring: 10" Plastic
Strainer: 10" Polyethylene strainer
Packaging: 1/carton
