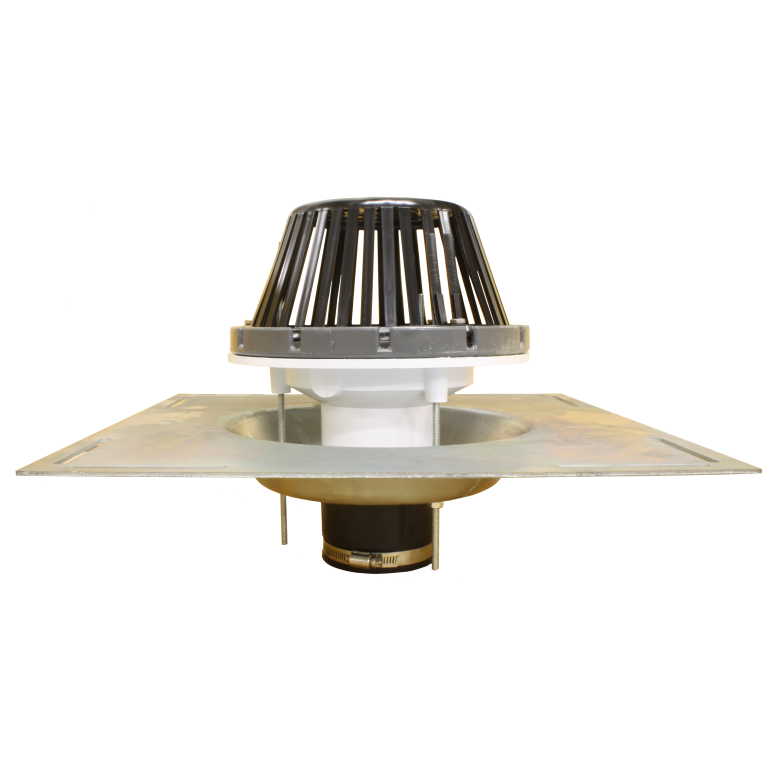

Fast Pak PVC Roof Drain

The Fast Pak PVC is new installation/direct connect roof drain that allows for quick and easy installation from the deck, eliminating the need for underside installation via the under-deck clamp. It is adaptable to most generic materials of single ply and conventional built-up roofing for use with roof decks of steel, wood, precast concrete or gypsum. This drain offers versatility and easy installation on new and existing roofs.

Features

Molded polyethylene strainer bolts to clamping ring
Metal clamping ring with gravel stop
Galvanized extension/bearing flange allows for easy installation from the rooftop.
Injection molded PVC drain body
UV stabilized for long life
Flexible rubber expansion coupling

Options

Aluminum strainer
2-3/4" low profile aluminum strainer
Cast iron strainer
Aluminum clamping ring
Metal clamping ring
2" overflow ring
Available in 2", 3" and 4"

Information

Size/Part #

2" - BS-1072FP

3" - BS-1070FP

4" - BS-1080FP

Body: PVC
Flange: 18" x 18" galvanized
Outlet length: No hub
Clamping Ring: 10" Epoxy coated aluminum
Strainer: 10" Polyethylene strainer
Packaging: 1/carton
