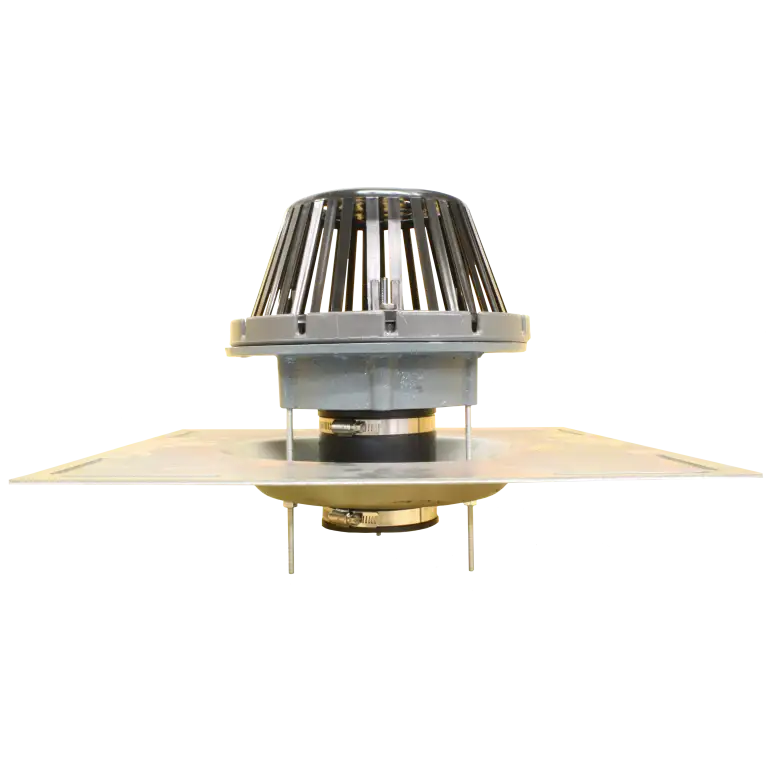

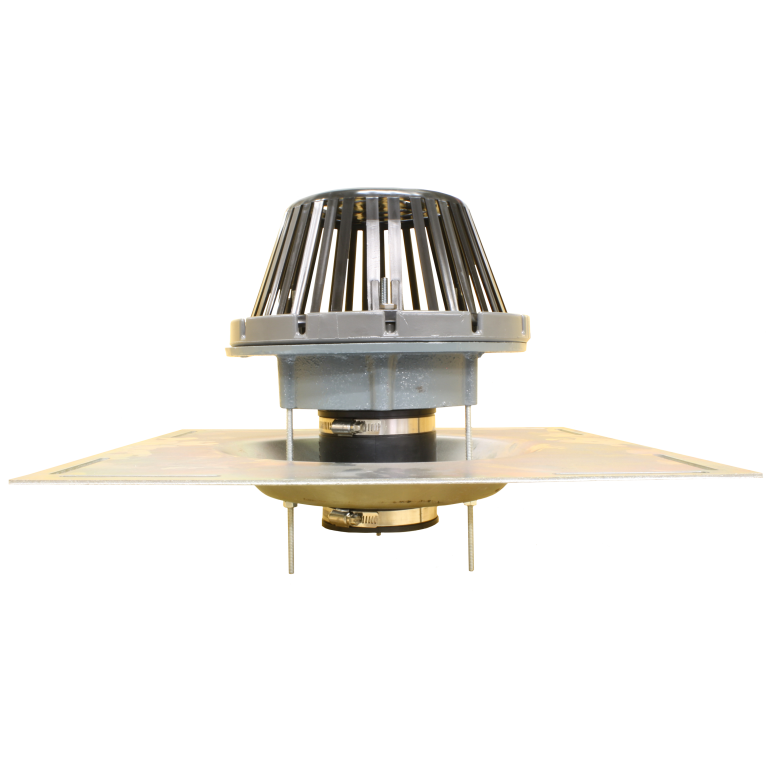

The Fast Pak Cast Iron new installation/direct connect roof drain allows for quick and easy installation from the deck, eliminating the need for underside installation via the under-deck clamp. It is adaptable to most generic materials of single ply and conventional built-up roofing for use with roof decks of steel, wood, precast concrete or gypsum.
The Fast Pak Cast Iron roof drain offers versatility and easy installation on new and existing roofs.
Molded polyethylene strainer bolts to clamping ring
Metal clamping ring with gravel stop
Galvanized extension/bearing flange allows for easy installation from the rooftop.
Cast Iron drain body
UV stabilized for long life
Flexible rubber expansion coupling
2-3/4" low profile aluminum strainer
Cast iron strainer
Aluminum clamping ring
Metal clamping ring
2" overflow ring
Available in 3" and 4"
3" - BS‐1110FP
4" - BS‐1120FP
Body: Cast Iron Flange: 18" x 18" galvanized Outlet length: No hub Clamping Ring: 10" Epoxy coated aluminum Strainer: 10" Polyethylene strainer Packaging: 1/carton
