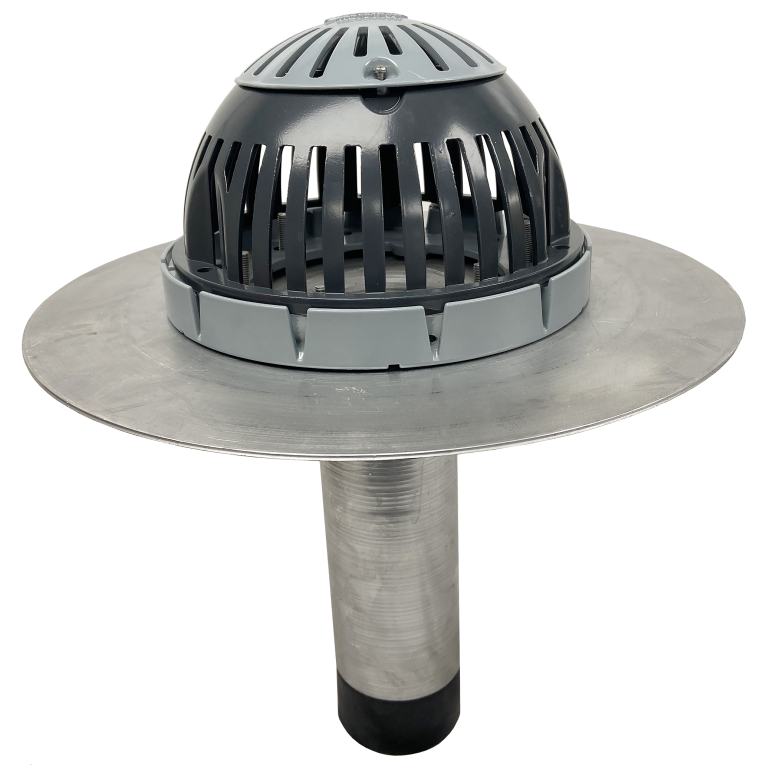

Our Aluminator Pro Drain with our NEW Coated Pro Dome Strainer and Coated Clamping Ring.
Features
- All Aluminum Retrofit Drain - Same features as our standard Aluminator with below upgrades
- Coated Pro Dome Aluminum security strainer w/ removal lid for easy cleaning
- Coated Aluminum Clamping Ring
- Optional TPO Coated Flange
- Optional PVC Coated Flange
Information
2" BALUM2CRPRO
3" BALUM3CRPRO
4" BALUM4CRPRO
5" BALUM5CRPRO
6" BALUM2CRPRO
Body: Heavy gauge spun aluminum
Flange: 16"
Outlet length: 12"
Clamping Ring: Coated 10" Aluminum
Strainer: Coated 10" Aluminum
Packaging: 1/carton
Resources
Aluminator Pro : CAD Drawing Aluminator Pro: Data Sheet Aluminator Pro Instructions: Installation GuideCertifications
Specifications
| Roof Drain Size | Starting OD of Seal/Outlet | Fits Into Pipe ID | Maximum Expansion Diameter of Seal | ID of Seal | GPM |
| 3" | 2.85" | 2 7/8 - 3 1/4 | 3.40" | 2.19" | 45 |
| 4" | 3.80" | 3 7/8 - 4 1/4 | 4.40" | 3.12" | 65 |
| 5" | 4.80" | 4 7/8 - 5 1/4 | 5.40" | 4.15" | 180 |
| 6" | 5.70" | 5 7/8 - 6 1/4 | 6.60" | 5" | 210 |
