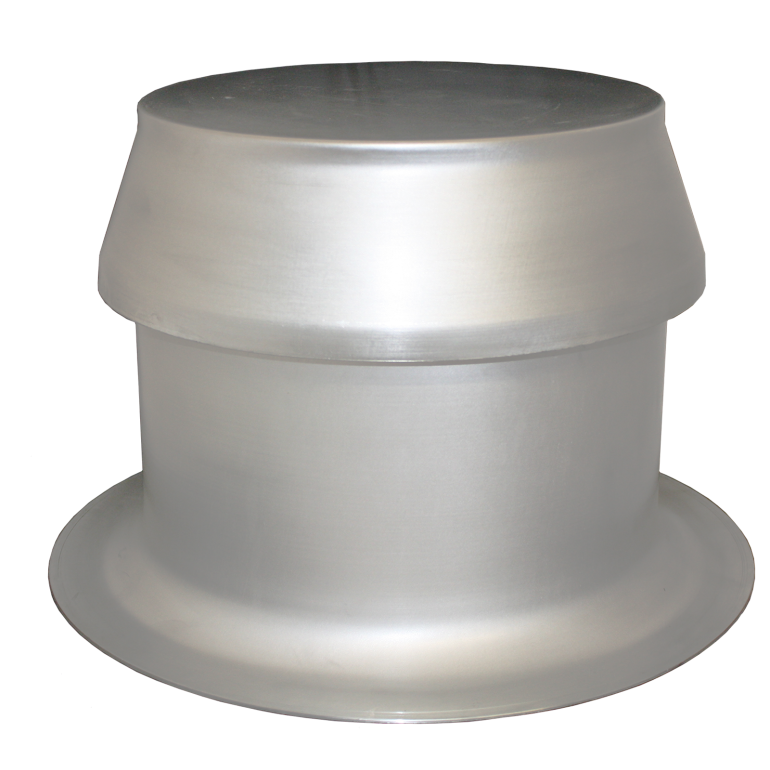

Aluminum vent that provides pressure equalization in the roof system. Spun from heavy gauge aluminum with unique cap design that shields against entry of wind-blown rain or snow.
Features
- Provides pressure equalization
- Spun from heavy gauge aluminum
- Provides venting for all types of insulation
- Extra wide base opening
- Vandal proof cap
- Simple and easy to install
Options
- Foam insert to prevent moisture from condensing on the inside of the standpipe
- Available in one-way or two-way
- TPO coated flange
- PVC coated flange
Information
Size/Part #
XLC Vent - One Way
PN: BV-1019
XLC Vent - Two Way
PN: BV-1018
Packed 4/carton
Specifications
| Overall height | Base opening | Base opening with insulation insert | Flange diameter | Flange material | Recommended spacing |
| 11-1/2" | 12-1/2" | 10" | 17-1/4" | Aluminum | 1 Per 2,000 Sq. FT. |
