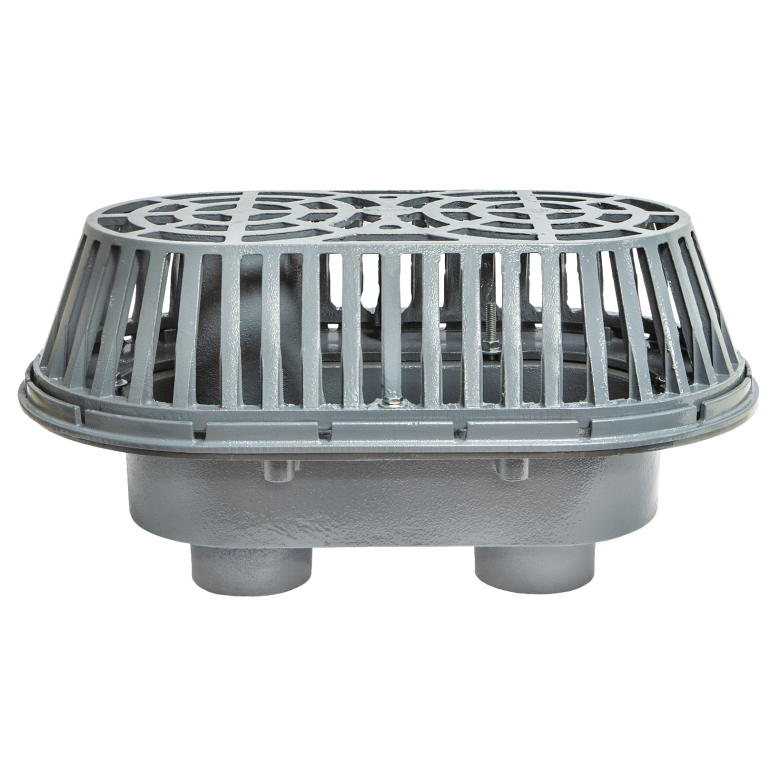

RD-700 epoxy coated cast iron dual outlet roof drain/overflow combination with flashing clamp, integral gravel stop, 2 in. high internal overflow standpipe, secured ductile iron dome, and no hub outlets. Constructed to withstand climate and the rigors of long-term use.
Features
- Flashing clamps with integral gravel stop and overflow standpipe for reliable drainage and overflow
- Secured ductile iron dome is engineered to last
- No hub outlets for easy installation
- Engineered with cast iron for long life and durability
Options
- Under-deck clamp
- Deck flange/Adj. extension
- Aluminum strainer
- Vandal proof strainer
- 4" high overflow
- Available in 3", 4" and 6"
Information
Size/Part #
3" - BHWL7032
4" - BHWL7042
6" - BHWL7062
Specifications
Free area: 157 square inches
Deck opening: 18-1/2" (470) x 10-1/2" (267), with sump receiver: 22" (559) x 14" (356)
Related Products
RD-260 Small Area Dual Overflow Roof Drain
Type: New Installation/Direct Connect
Material: Cast Iron
