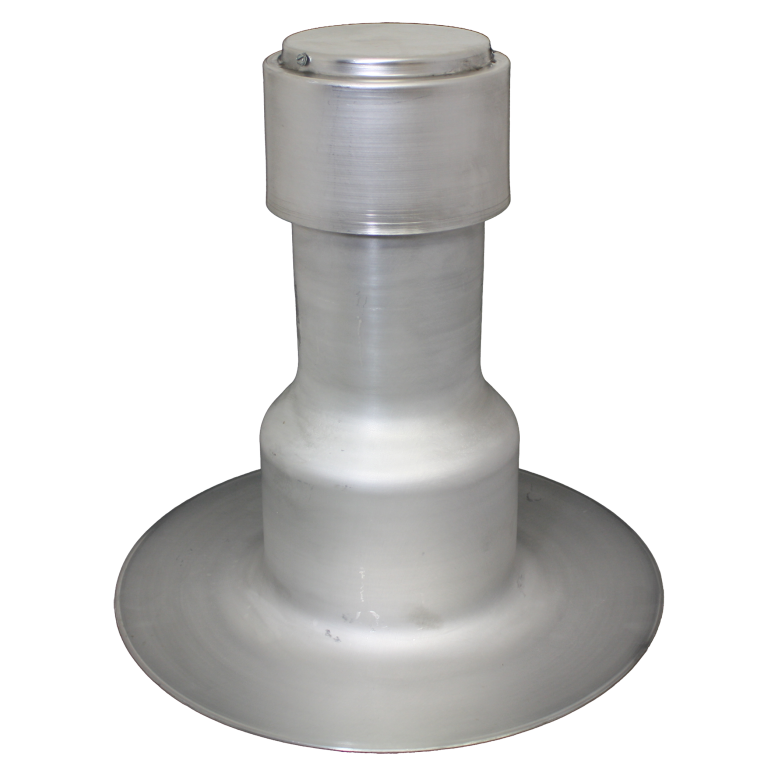

Constructed of heavy gauge aluminum the high security vent is ideally suited for school roofs and other building areas susceptible to mischief and tampering. A key feature is the locked on cap which resists removal and keeps the venting operation secure.
Features
- Made of heavy gauge spun aluminum
- Secures plumbing vent stacks
- Protects roof penetrations
- Reduces vandalism
- Simplifies installation
Options
- TPO coated flange
- PVC coated flange
Information
Part #
Universal fit - BV-1068
Packed 6/ carton
Specifications
| Base opening | Flange diameter | Cap diameter | Outlet diameter | Overall height | Max. hub height over roof level | Flashing width |
| 7" | 15-1/4" | 5-3/4" | 4-3/4" | 15-1/4" | 5-1/2" | 4" |
