Economy PVC Drain

Features

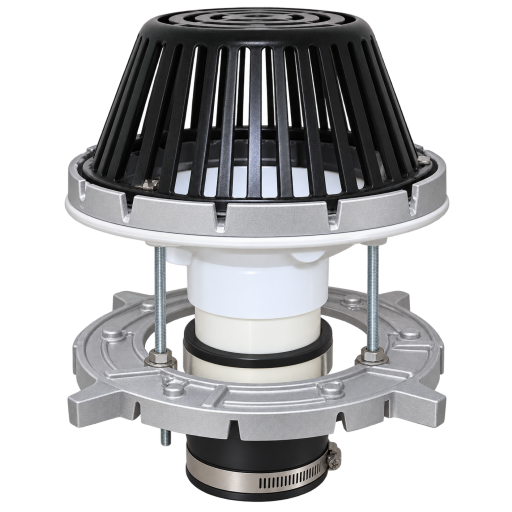

4" Economy PVC Direct Connect Roof Drain for easy

installation. Provides the essential features of more

expensive drains at an affordable price. Drain is adaptable

to most generic materials of single ply and conventional

built-up roofing for use with roof decks. 3" Drain available

using our 4" - 3" Coupling Reducer.

STANDARD FEATURES:

• 4" Direct Connect No Hub PVC Body Drain

• 8-1/2" x 8-1/2" Flange

• 4-3/8" x 4-3/8" Flat Plastic Grate

Options

• 5" X 5" SS Clamping Ring

• SS Flat Grate

• Plastic Dura Strainer

• 4" Rubber Coupling /w PVC Reducer

• 4" - 3" Rubber Coupling w/ PVC Reducer

Information

PART NUMBERS:

• BS-1330 - Standard w/ Plastic Flat Grate
• BS-13301 - With Plastic Flat Grate and SS Clamping Ring
• BS-13302 - With SS Clamping Ring & SS Flat Grate
• BS-13303 - With SS Clamping Ring & Plastic Dura Strainer
• BS-13304 - With Dura Plastic Strainer
• BS-13305 - 4" Rubber Coupling w/ PVC Reducer **
• BS-13306 - 4" - 3" Rubber Coupling w/ PVC Reducer **
** Part Number added to above Drains when ordering Coupling Options
