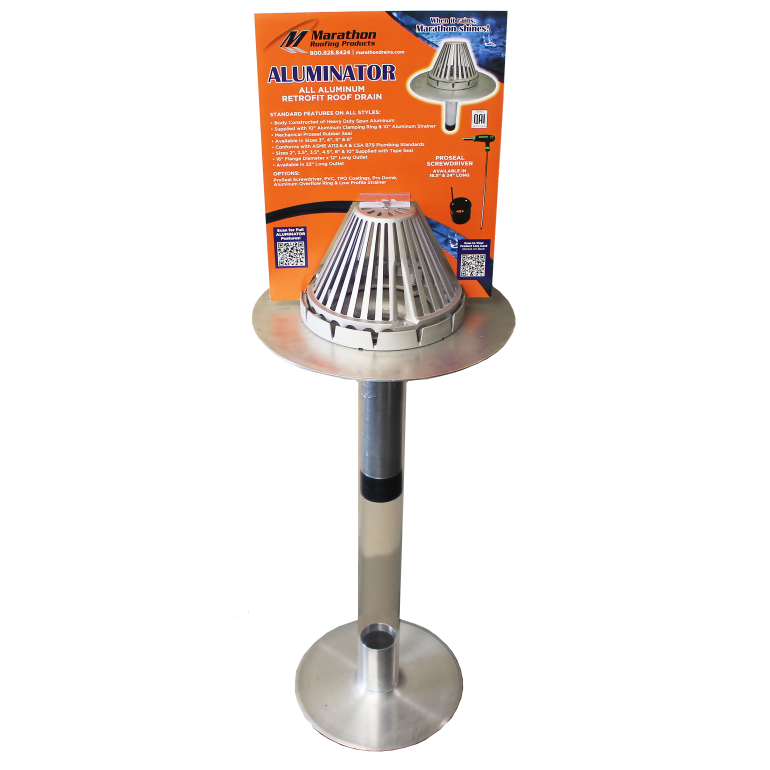

For limited time, Aluminator comes with FREE Drain Display! Call & ask about our special offerings - 800.828.8424
Features
-All aluminum retrofit roof drain
-Heavy duty cast aluminum ring designed for maximum drainage
-Cast aluminum strainer
-Larger stud diameter for increased strength
-Includes ProSeal for a strong mechanical seal to prevent water back-up issues
Options
-2" aluminum combination clamping ring/overflow dam
-2" and 4" aluminum overflow insert
-2-3/4" Aluminum low profile strainer
-TPO coated flange
-PVC coated flange
-Available in sizes of 3", 4", 5", 6" w/ ProSeal Rubber Seal. Certified to conform with ASME 112.6.4 and CSA B79 standards
-2" & 8" supplied with Tape Seal
-Non standard sizes also available - 2.5", 3.5" and 4.5". All supplied with Tape Seal
Information
Body: Heavy gauge spun aluminum
Flange: 16"
Outlet length: 12"
Clamping Ring: 10" Aluminum
Strainer: 10" Aluminum
Packaging: 1/carton
