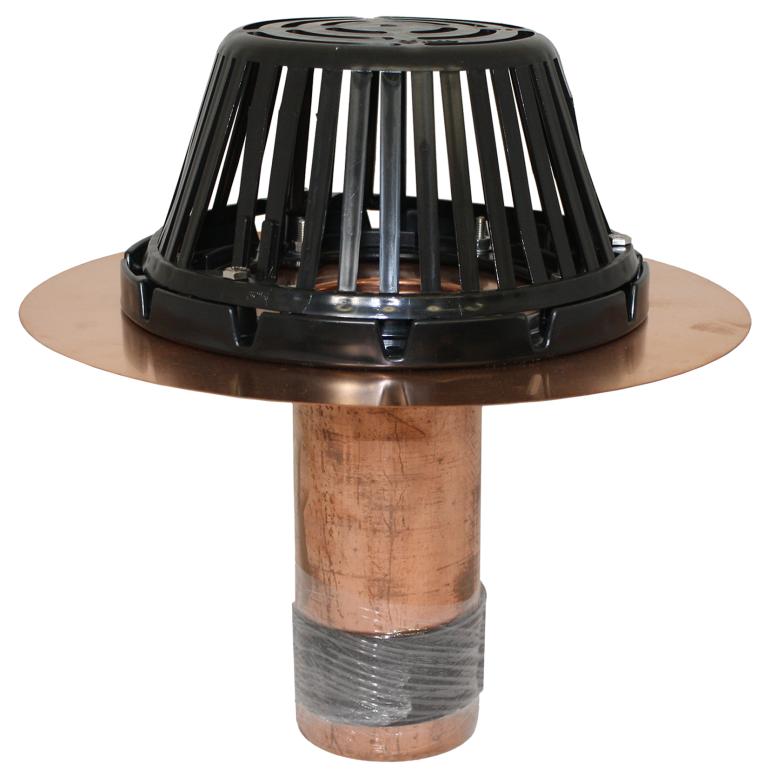

COPPER for reliable longevity, TITE for a secure water tight fit. The Copper-Tite is retrofit roof drain made up of a copper body, ABS clamping ring (standard), polyethylene strainer (standard) and expanding tape to prevent water backflow issues.
Features
- Quick and easy to install
- Copper flange
- New clamping ring style for single-ply systems
- Bolt in place polyethylene strainer
- Expanding tape to prevent water backflow issues
Options
- Aluminum strainer
- 2-3/4" low profile aluminum strainer
- Cast iron strainer
- Aluminum clamping ring
- Metal clamping ring
- 2" overflow ring
- TPO coated flange
- PVC coated flange
- Available is sizes of 2" - 10"
- Available in Non Standard Sizes of 2.5", 3.5", 4.5", 5.5" and 6.5"
- Custom sizes available
Information
Body: Copper
Flange: 14" or 18"
Outlet length: 9"
Clamping Ring: 10" ABS
Strainer: 10" Polyethylene
Packaging: 1 per carton
Resources
Retrofit Drains: Product Brochure Copper-Tite: Data Sheet Copper-Tite: CAD Drawing Copper-Tite Roof Drain : SpecificationCertifications
Specifications
| Roof Drain Pipe Size | Part # | Specification | Flange Size | Part # |
Specification | Flange Size | Part # | Specification | Flange Size |
| 2" | BCST29 | 175 x 9 (SF) | 14" | BCTS29CR | 175 x 9CR (LF) | 18" | BCTS29CR(E) | 175 x 9CR (SF) | 14" |
| 3" | BCTS39 | 275 x 9 (SF) | 14" | BCTS39CR | 275 x 9CR (LF) | 18" | BCTS39CR(E) | 275 x 9CR (SF) | 14" |
| 4" | BCTS49 | 375 x 9 (SF) | 14" | BCTS49CR | 375 x 9CR (LF) | 18" | BCTS49CR(E) | 375 x 9CR (SF) | 14" |
| 5" | BCTS59 | 475 x 9 (LF) | 18" | BCTS59CR | 475 x 9CR (LF) | 18" | |||
| 6" | BCTS69 | 575 x 9 (LF) | 18" | BCTS69CR | 475 x 9CR (LF) | 18" | |||
| 8" | BCTS89 | 775 x 9 (LF) | 18" | BCTS89CR | 775 x 9CR (LF) | 18" |
(SF) Small Flange
(LF) Large Flange
